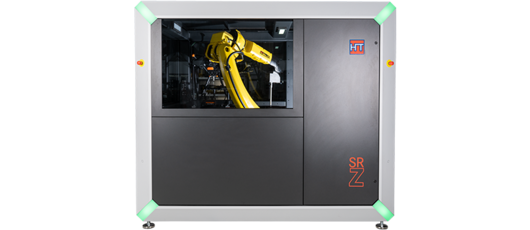

SRZ - consistently versatile
The SRZ is your integrated automation solution for fully automated production. Combine your wide range of machining steps with minimum use of staff. Your universal support for both small and large batch sizes. Can be used as a stand-alone cell, in conjunction with up to two machining systems or as a link in a more complex chain.
Integrated cell design
Everything you need in a compact cell. This allows the system to be positioned in your production hall easily and quickly with a forklift or crane.
The cable duct integrated in the frame also ensures a clean interior and minimum wear of the installed components.
Due to the closed design and the emulsion drip pan offered standard, displaced chips and liquids end up in the cell and not on the hall floor.
No-trip accessibility
The sophisticated sliding unit allows you to effortlessly move the cell aside for equipping and maintenance work. Thanks to the stable base frame, no support feet or guide rails are needed in the access area. This allows you clear access to your machine - without any safety-critical tripping hazards.
Applications
The SRZ is recommended for both fully-automatic loading and unloading of connected machines as well as for a stand-alone operation of, for example, inspection or assembly activities. Additional added value is offered by integrating upstream and downstream processes.
Potential handling objects:
Workpieces, clamping pallets and/or dies
Ideal batch sizes:
Small to large
| Integrated robot(s) | 1-3 |
|---|---|
| Max. robot load | Approx. 70 kg |
| Robot makes | FANUC, KUKA or based on customer specifications |
| Possible machine connections | 1-2 |
| Data interfaces | PROFINET, PROFIBUS, PROFIsafe, Ethernet, Hardware, IO-Link, etc. |
| Storage solutions | Various standard modules available (see storage modules) |
| Main time parallel equipping | Yes |
| Integration of additional process modules | Yes (see process modules) |
| Integration of HaTPad | Optional |
| Custom adjustments possible | Yes |
| Safety | Integrated cell concept with laminated safety glass and transponder coded safety switches |
